DQS3

Dual Quadrant Sun Sensor Stimulator (DQS3) is an Optical Ground Support Equipment (OGSE) designed to verify the correct operation of sun sensors in production and integration environments.

The system enables simultaneous testing of multiple sun sensors using independent and controlled light sources with high stability and repeatability.

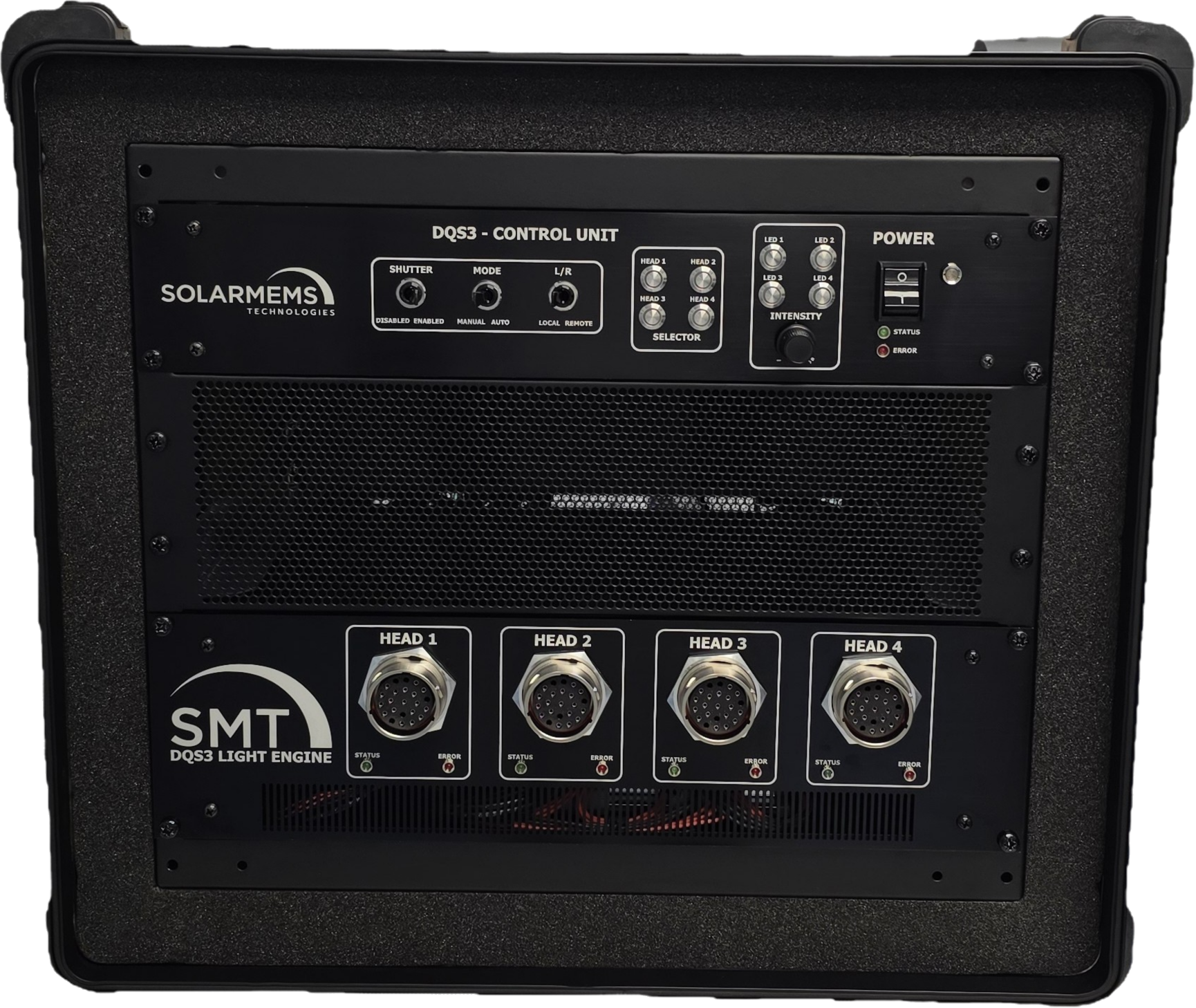

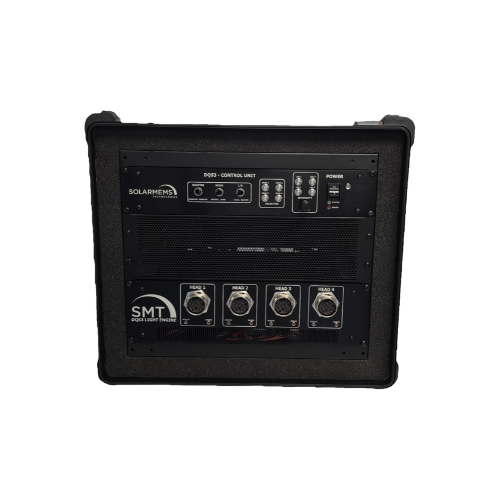

DQS3 operates as a standalone unit or through remote control, providing flexible operation modes and full monitoring of system parameters.

DQS3

Industry

Space

Comm. Interface

Ethernet (CCSDS C&C protocol)

Light Spectrum

380-780 nm

Power Supply

90 – 264VAC (50 / 60 Hz) 360W max

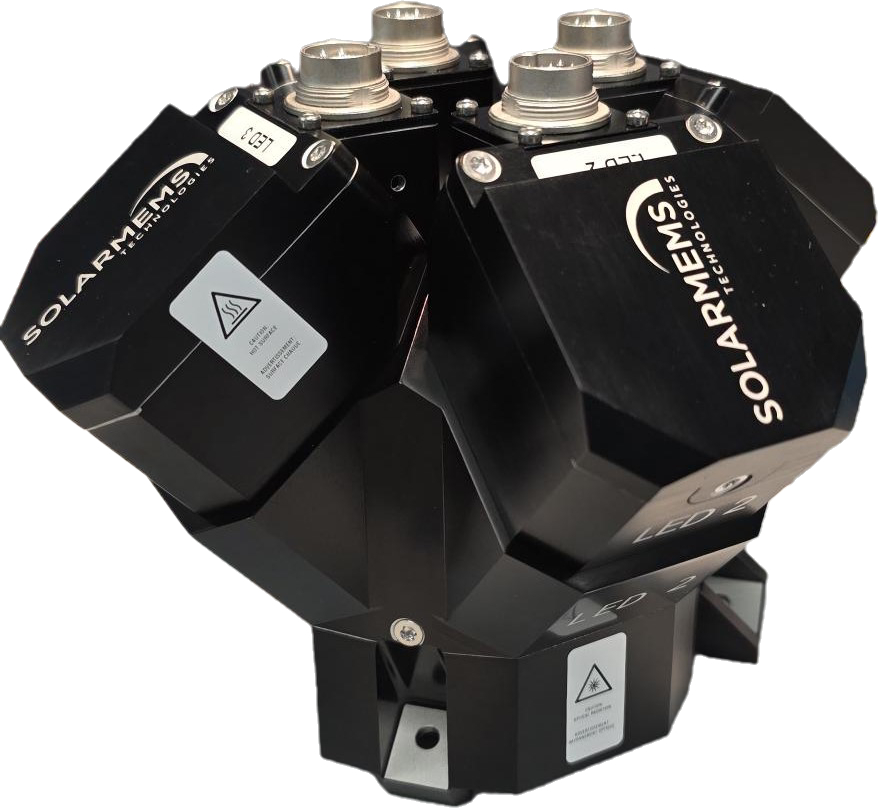

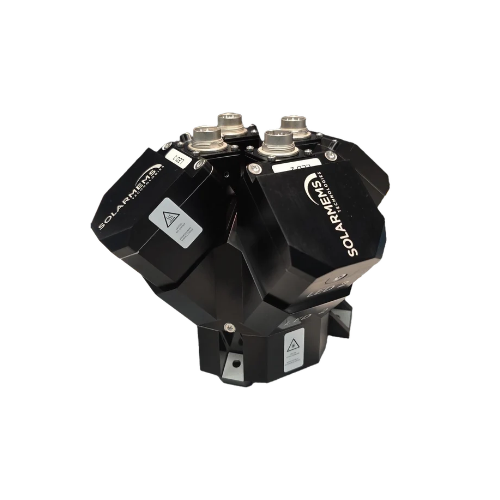

Optical head temperature range

-40º to 95º C (no vacuum)
-40º to 90º C (vacuum)

Optical head mounting

Three-point mounting system, M4 screws
