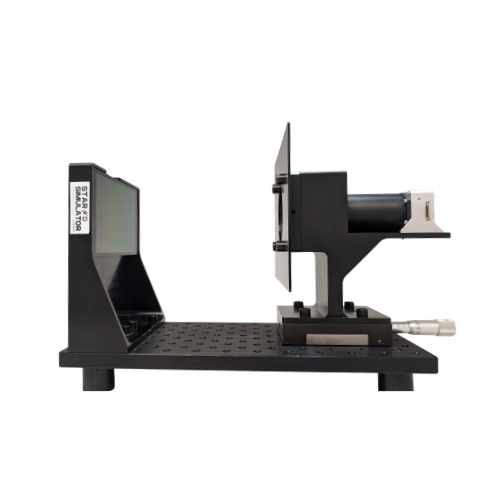

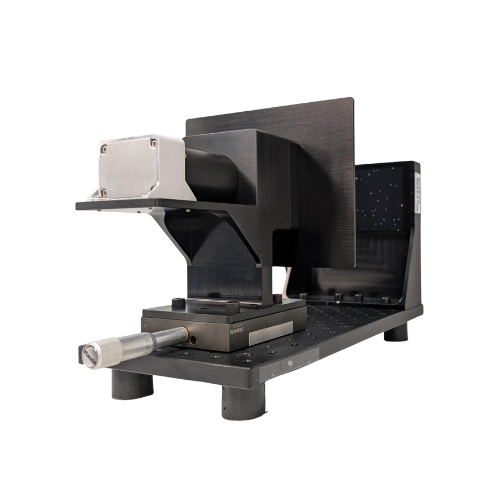

The STAR-D Simulator is a compact, robust and cost-effective Optical Ground Support Equipment (OGSE) designed to support the testing and validation of high-precision Star Trackers under simulated in-orbit conditions.
The system displays complete star fields and reproduces realistic satellite trajectories and star patterns, providing controlled, reliable and repeatable conditions for Star Tracker testing.
Designed as a plug-and-play solution, STAR-D features an intuitive PC interface and can be adapted to different Star Tracker configurations. Its compact architecture simplifies integration into laboratory and flat-sat environments, helping engineering teams reduce testing complexity and streamline ADCS development and validation.
|
Type |
Dynamic Simulator |
|
Full Field of View |
19.5º (Customization upon
request) |
|
Screen resolution |
1020×1080 |
|
Optics |
Collimation system |
|
Star pattern |
Full Star Field |
|
Simulated objects |
Up to 6.5 apparent magnitude |
|
Pressure |
Ambient |
|
Operational temperature |
0º to 35º |
