nanoSSOC D60

Digital Sun Sensor for Nano-Satellites

Nano Sun Sensor on a Chip (nanoSSOC) is a two-axes and low cost sun sensor for high accurate sun-tracking, pointing and attitude determination. The device measures the incident angle of sun ray in two orthogonal axes, providing a high sensitivity based on the geometrical dimensions of the design.

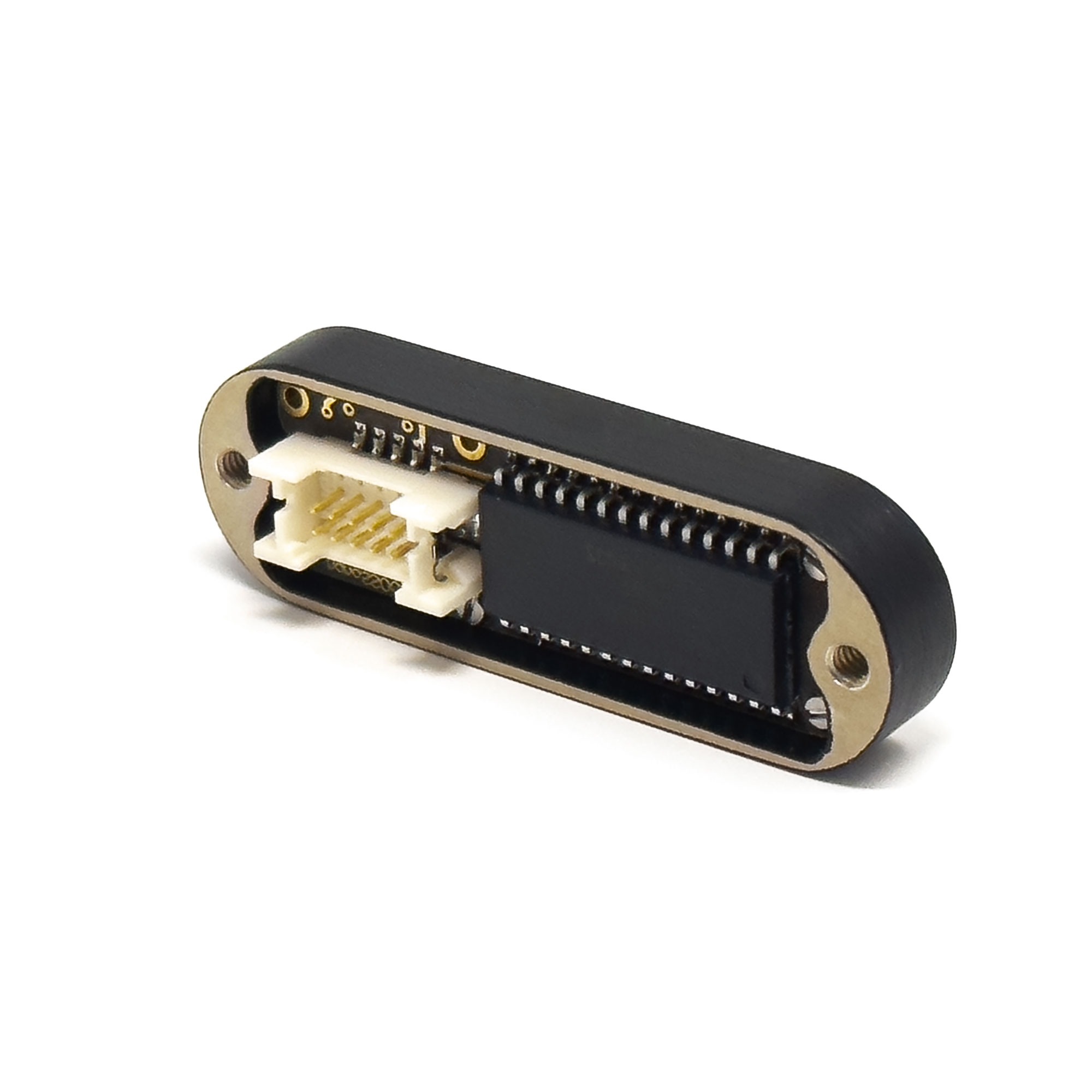

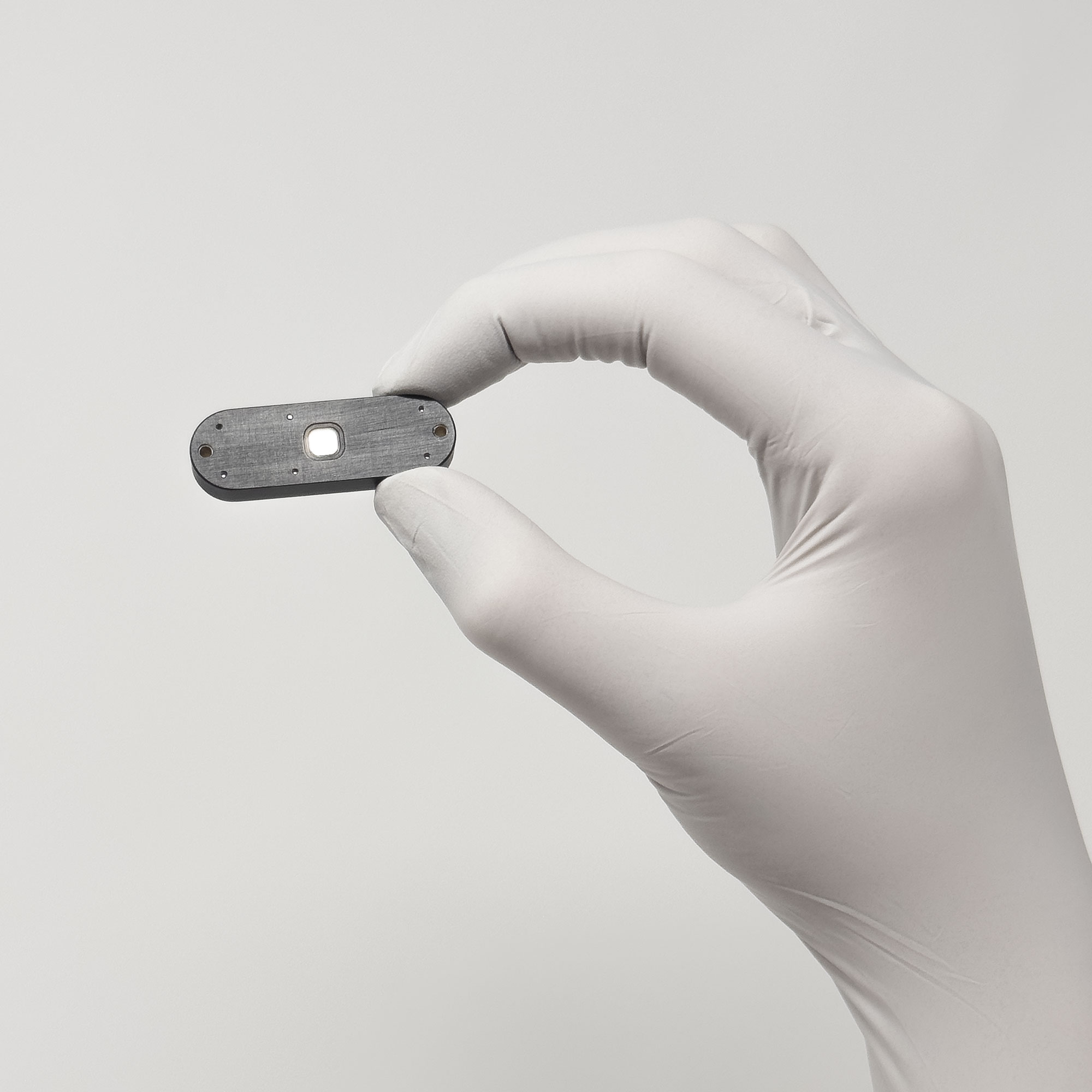

NanoSSOC-D60 includes a microcontroller that directly provides the sun light incident angles and other information useful for attitude determination, via UART, I2C or SPI protocol. nanoSSOC-D60 has tiny size, low weight and low power consumption to be the perfect ADCS sensing solution for nanosatellite platforms.

nanoSSOC D60

Industry

Space

Comm. Interface

Digital

Comm. Protocol

UART, I2C, SPI

Field of View (º)

±60

Power Supply (V)

3.3, 5 V

Operating Temperature

-30º to 85º Celsius

Radiation

30 Krad

Random Vibration

14,1 g @ 20-2000 Hz

Shock

3000 g @ 1-100 ms
